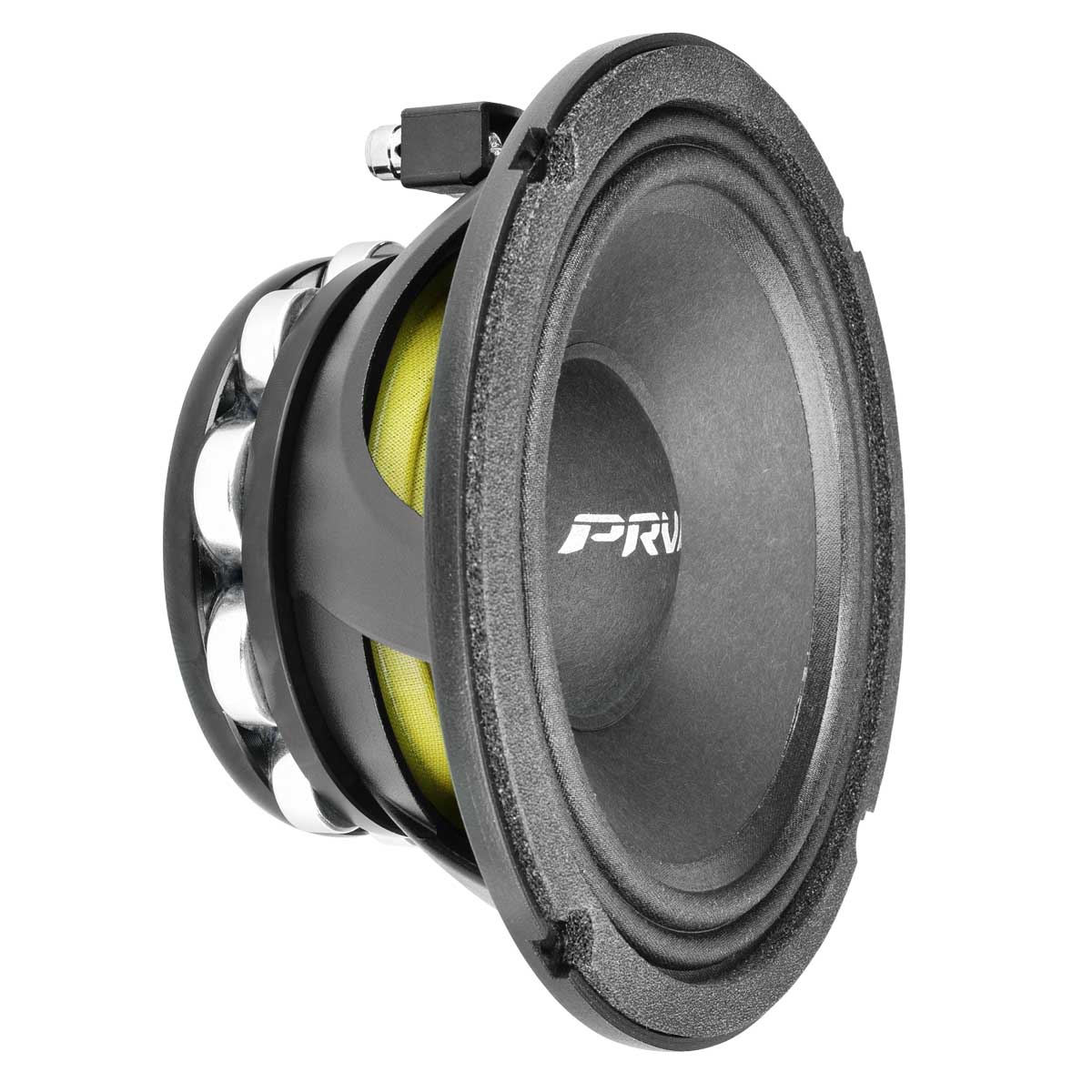

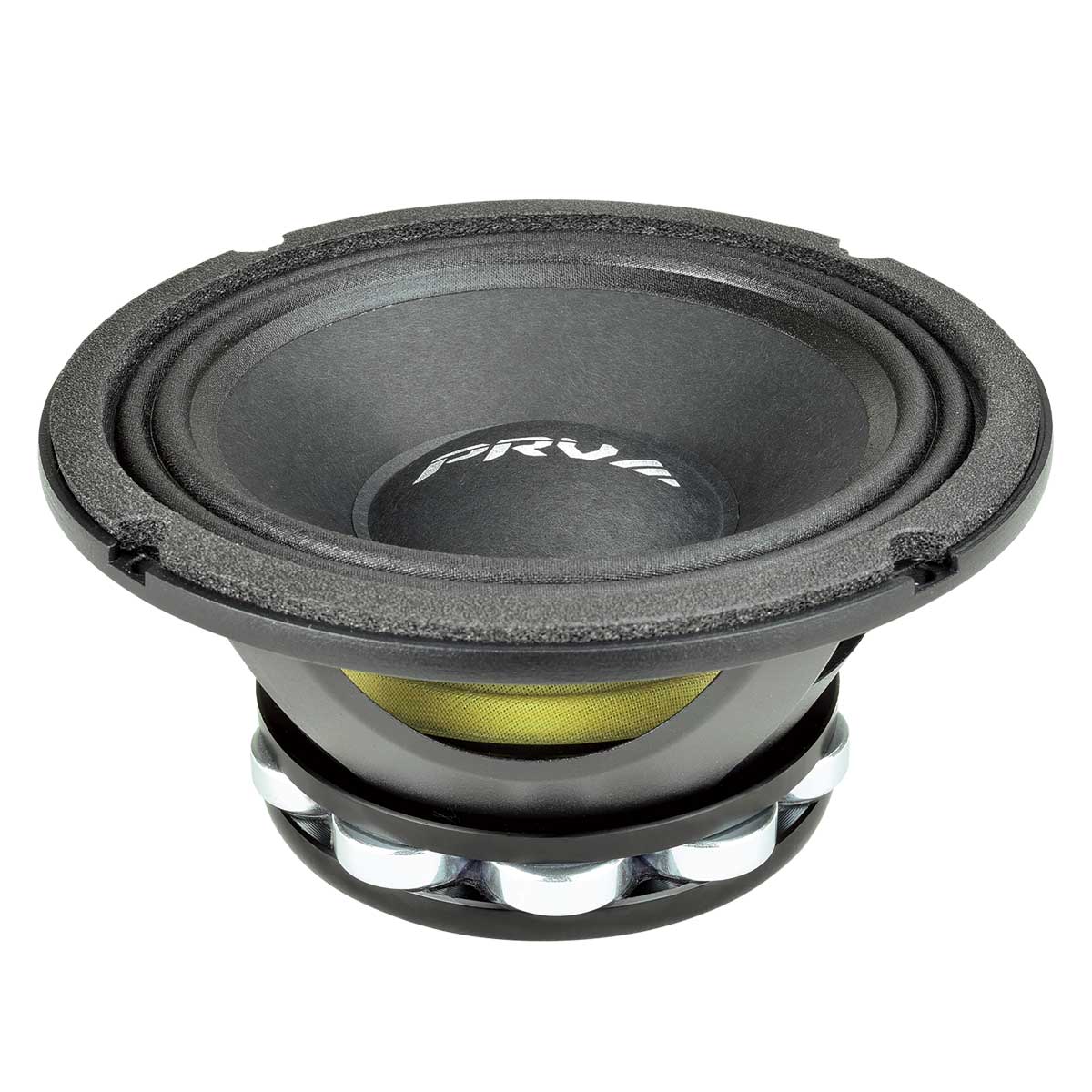

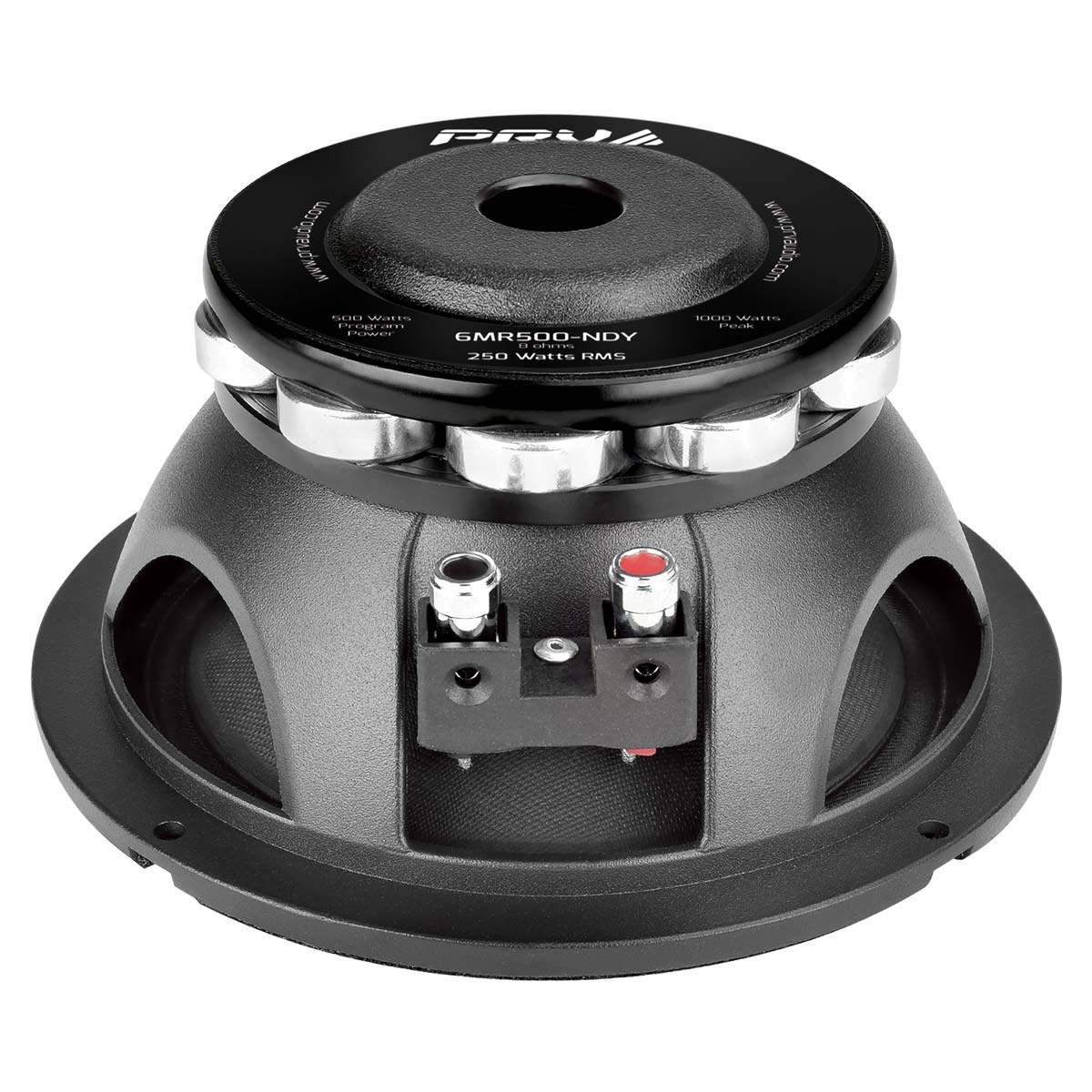

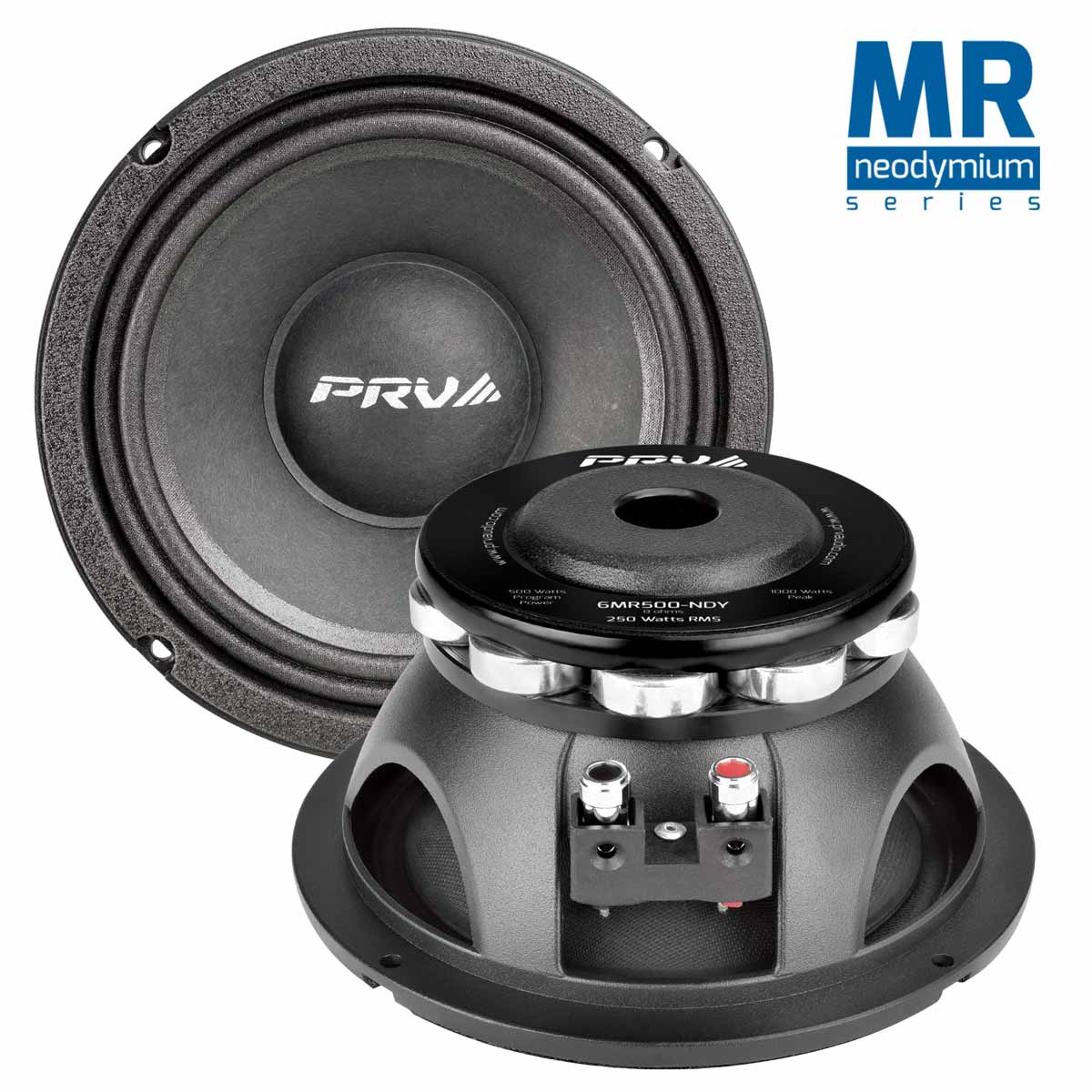

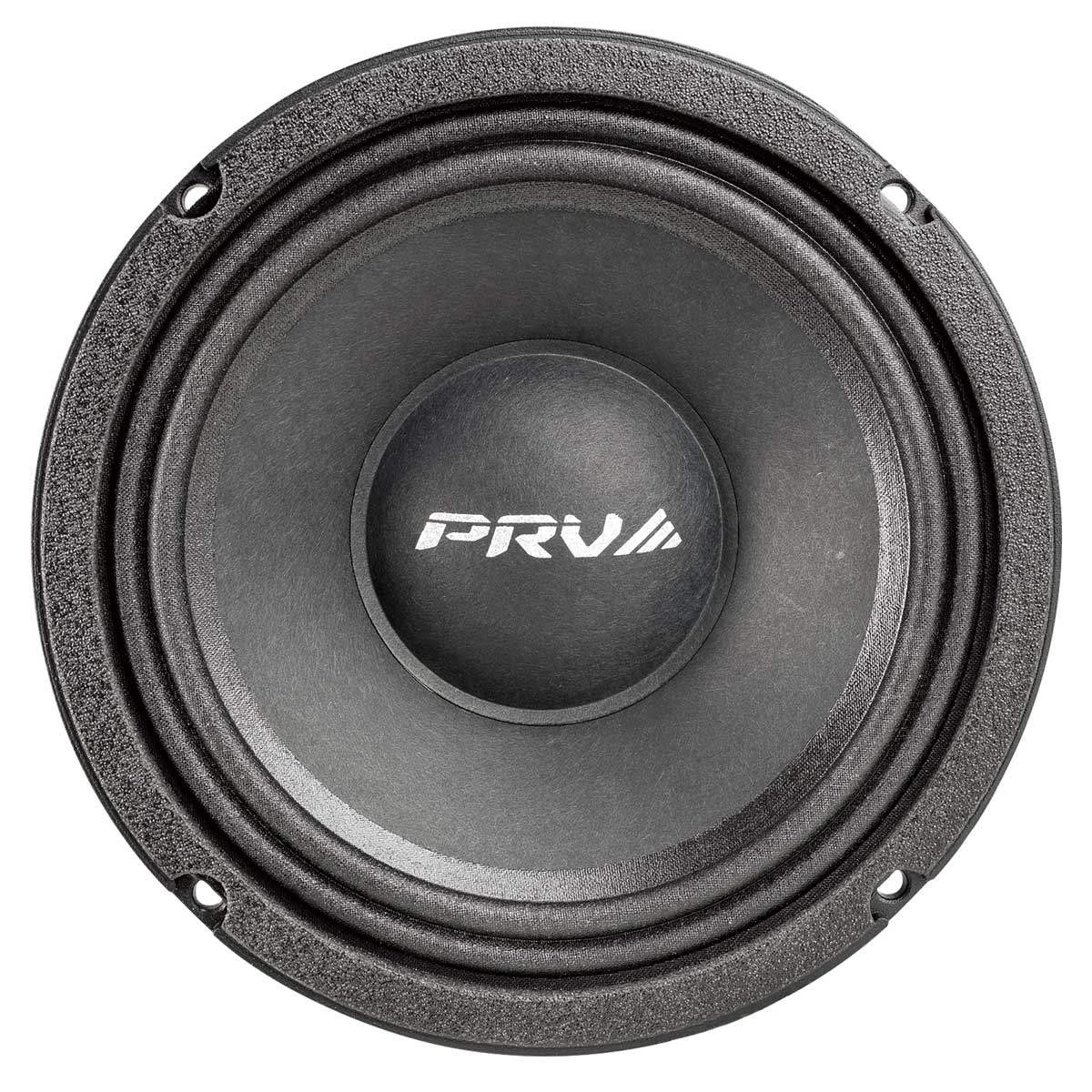

6MR500-NDY 6.5" NEODYMIUM MIDRANGE LOUDSPEAKER (B STOCK)

6MR500-NDY 6.5" NEODYMIUM MIDRANGE LOUDSPEAKER (B STOCK)

Regular price $95.00 USD
Regular price Sale price $95.00 USD
Sale Sold out
Shipping calculated at checkout.

B-stock items, often used or with cosmetic imperfections, are offered at a discount and are typically refurbished and tested to factory standards, ensuring functionality

  • These items may have been:
    • Reviewed items.
    • Used as demo units.
    • Factory seconds with cosmetic imperfections.
    • Refurbished.
    • Open-box items.
    • May not come in original packaging.

Warranty: NONE


Features


The PRV Audio Pro Audio Loudspeaker, 6MR500-NDY midrange woofer offers outstanding durability and a smooth fullrange response through 13,000kHz. This woofer is perfect for home Hi-Fi installs, including bookshelf, satellite, surround sound speakers and even the home studio monitors. It is a great option for three way cabinets requiring additional midrange support.

The high end neodymium magnet assembly was chosen to increase sensitivity and power handling. This neodymium is attached to a sturdy reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment. Its light weight of only 3.3 lbs helps keep your enclosures light and is a great use for car audio installers looking for high SPL midrange and upper midrange responses. For car audio enthusiast, this model is also available in 4 ohms.














  • Nominal Impedance: 8 Ohms
  • Rated AES Power Handling (RMS): 250 Watts
  • Program Power: 500 Watts
  • Sensitivity (1W/1m): 96 dB
  • Voice Coil Diameter: 2″

GENERAL SPECIFICATIONS

Nominal Diameter 6″ (152 mm)
Nominal impedance 8 Ohms
Rated AES Power Handling (RMS) 250 Watts
Program Power 500 Watts
Sensitivity 2.83V at 1m 96 dB
Recommended Hi Pass Crossover**
**For Full Power Handling
220 Hz**
**12db Per Octave Crossover
Frequency Response at -10dB 90 – 13,000 Hz
Voice Coil Diameter 2″ (50 mm)
Voice Coil Wire CCAW
Voice Coil Winding Depth 11.2 mm
Former Material Kapton
Magnetic Gap Depth 5.5 mm
Frame Material Die Cast Aluminum




THIELE-SMALL PARAMETERS

Equivalent Volume Vas 5.13 l
Excursion (mathematical)*** Xmax 4.22 mm
Free Air Resonance Fs 104.6 Hz
Mechanical Factor Qms 22.73
Electrical Factor Qes 0.54
Total Factor Qts 0.53
Cone Area Sd 143 cm²
Mechanical Mass Mms 12.88 g
Bl Factor Bl 9.84 Tm
Dc Resistance Re 6.2 Ohms
Inductance Le 0.12 mH at 1 kHz
Mechanical Mass Without Air Mmd 11.91 g
Mechanical Compliance Cms 0.179 mm/N

***Xmax=(Voice coil winding depth-Magnetic Gap depth)/2+ Mgnetic Gap Depth/4


EXTRA INFO

Overall Diameter 6.47″ (164.5 mm)
Front Mount Baffle Cutout 5.59″ (142 mm)
Mounting Depth 2.91″ (74 mm)
Overall Depth 3.22″ (82 mm)
Net Weight 3.34 Lbs (1.51 kg)
Shipping Weight 3.64 Lbs (1.65 kg)
Carton Dimensions W x L x H 7.09″ x 7.09″ x 4.37″
(155 x 155 x 95 mm)
