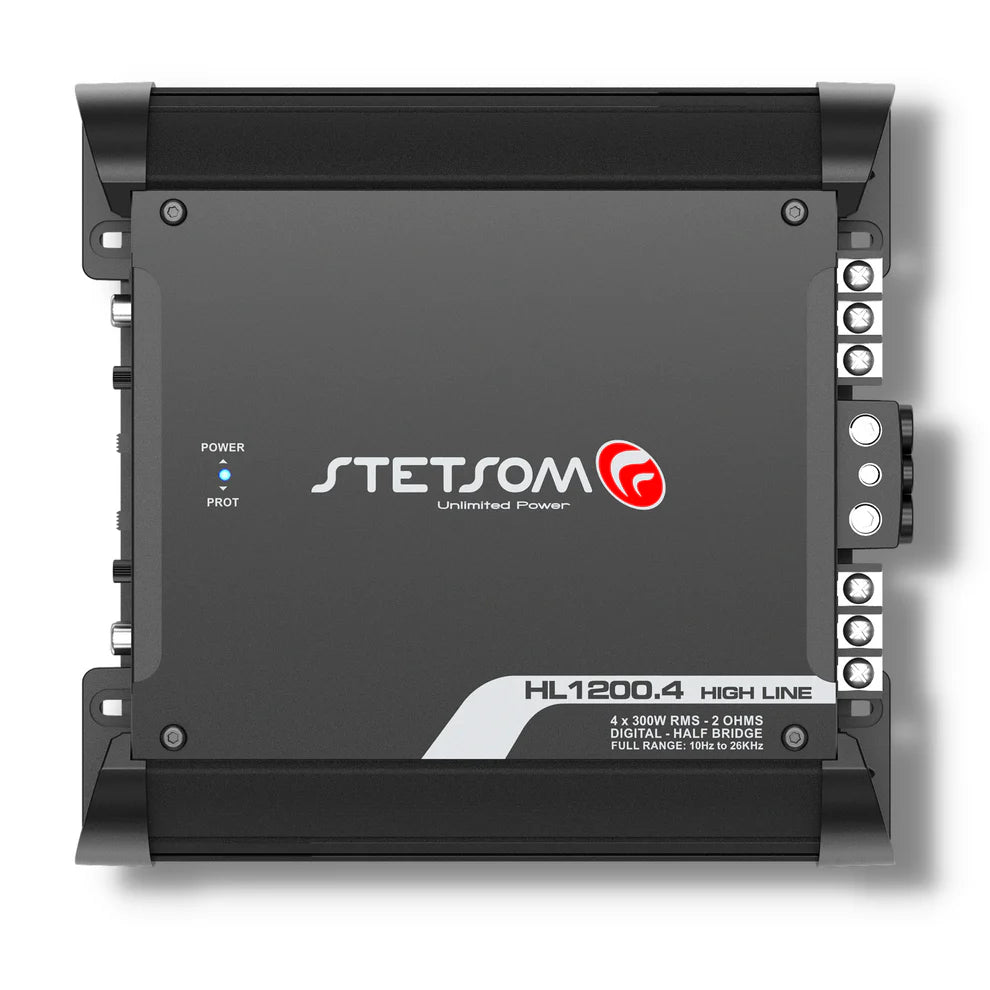

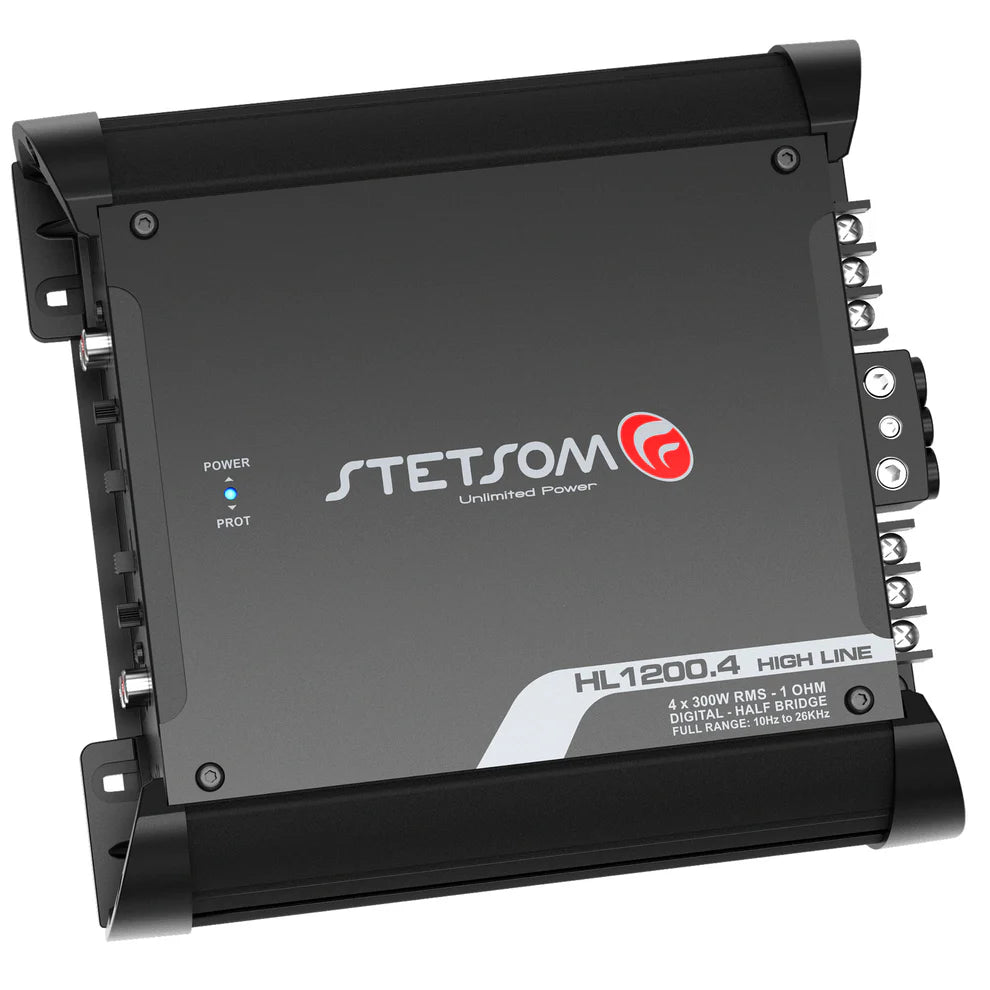

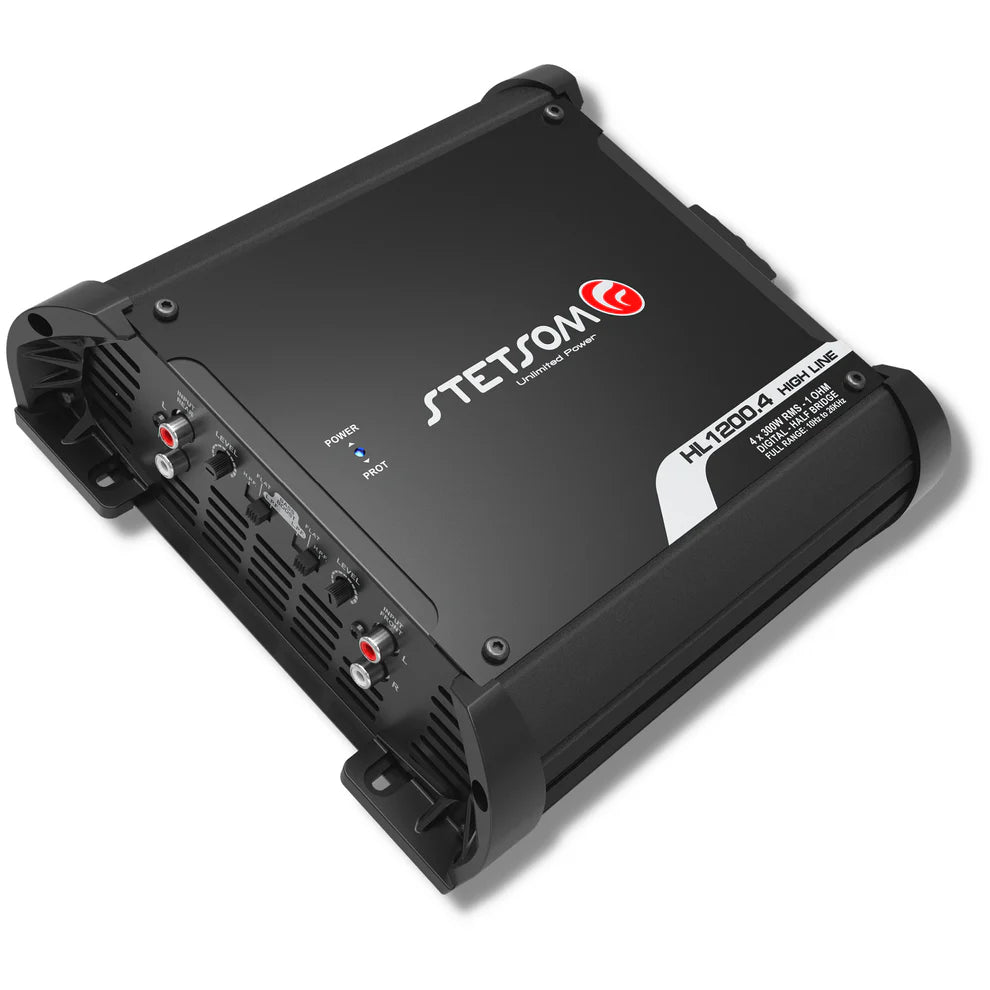

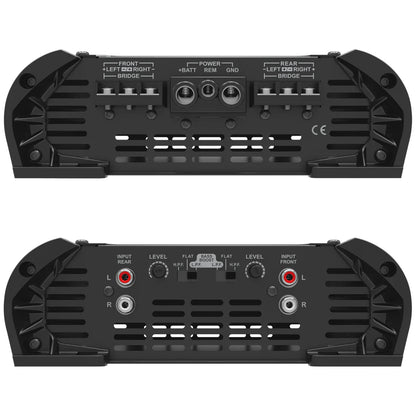

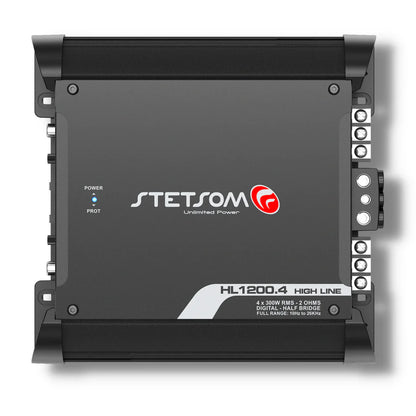

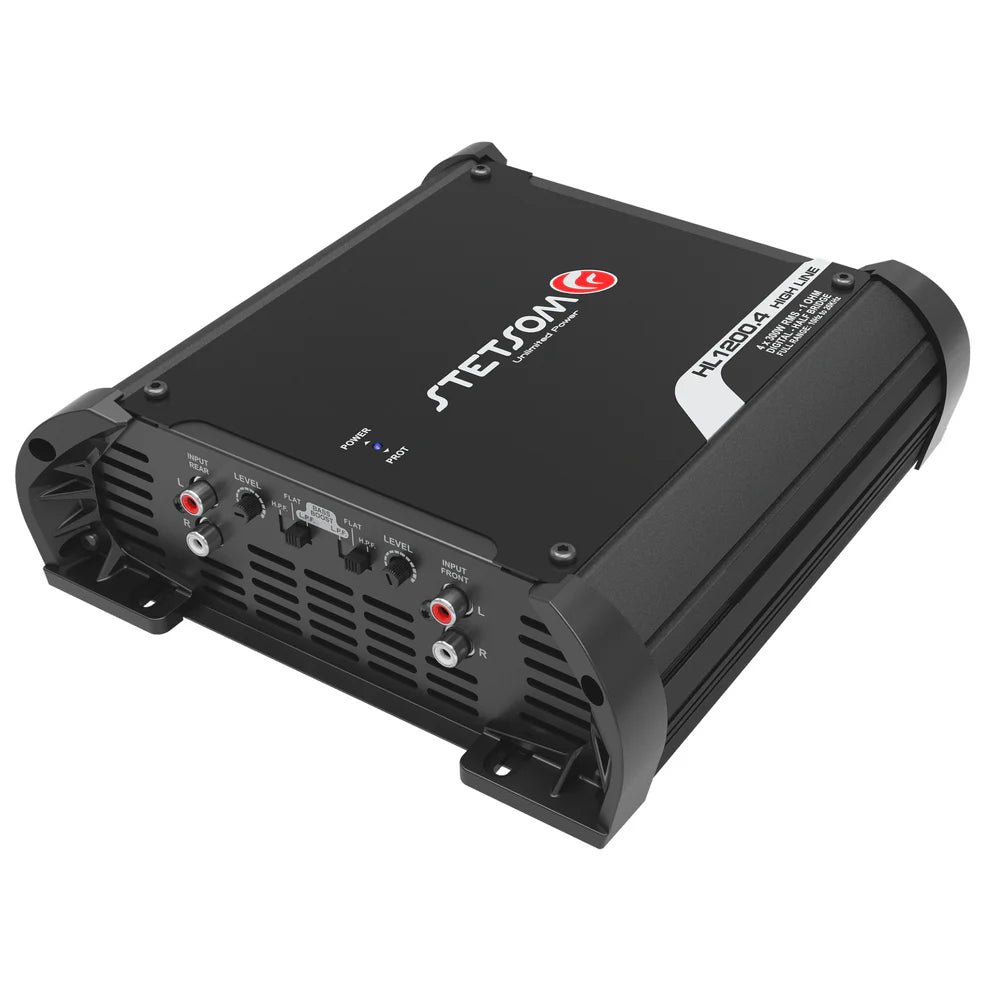

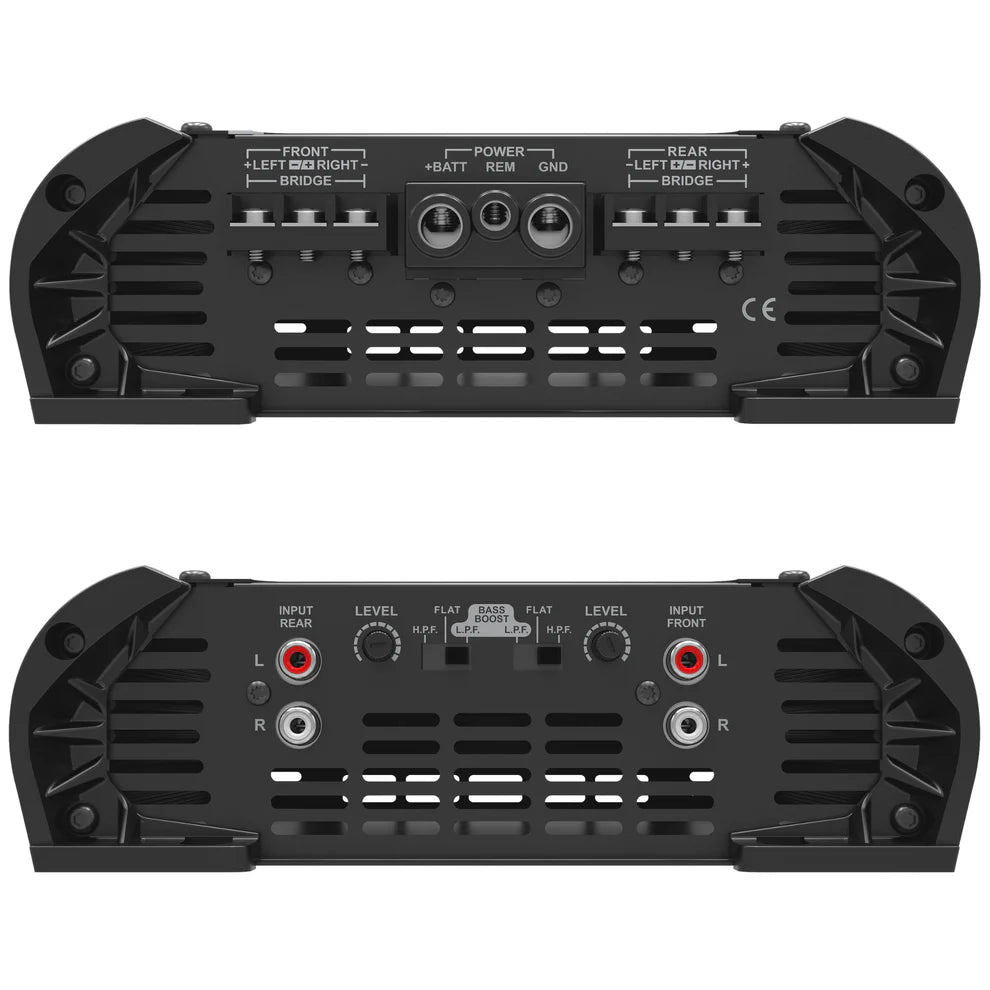

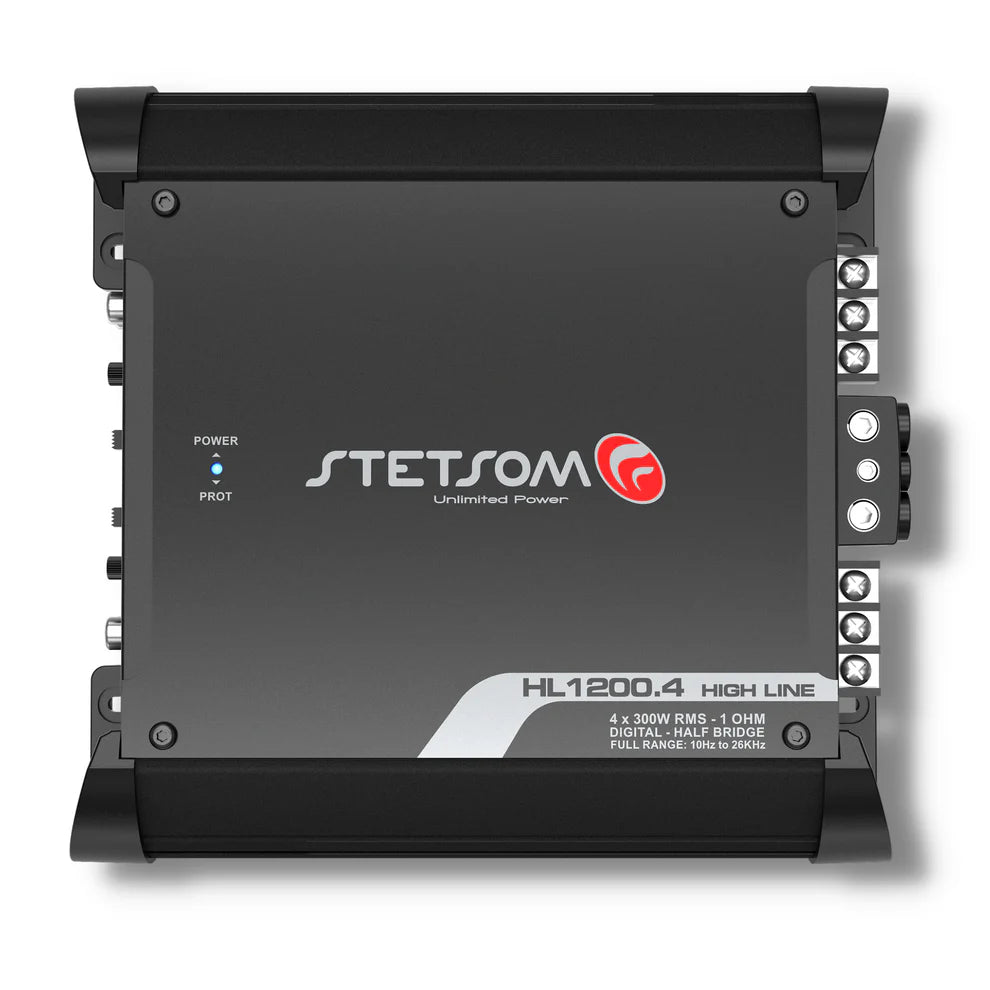

Stetsom HL 1200.4 Digital Amplifier 4 Channels Full Range Class D 1.2k RMS

TECHNICAL SPECS (1 Ohm):

• Number of Channels: 4
• RMS Power in 1 Ohm 12,6V: 4 x 300W RMS (STEREO)
• RMS Power in 2 Ohms 12.6V: 4 x 200W RMS (STEREO)
• RMS Power in 1 Ohm 14.4V: 4 x 350W RMS (STEREO)
• RMS Power in 2 Ohms 14.4V: 4 x 260W RMS (STEREO)
• Power @ 12.6V Bridge 2 Ohms: 2 x 600W RMS (BRIDGE)
• Power @ 14.4V Bridge 2 Ohms: 2 x 700W RMS (BRIDGE)
• Power Supply: 9 ~ 15V
• Frequency Response: 10Hz ~ 26KHz
• Bass Boost (Low Pass): +12 dB
• Low Pass Crossover: 90 Hz
• High Pass Crossover: 90 Hz
• Signal to Noise Ratio: > 90 dB
• Harmonic Distortion: < 0.3% THD
• Input Sensitivity: 0.2 V
• Input Impedance: 14K Ohms
• Minimum Output Impedance: 1 Ohm (STEREO) / 2 Ohms (BRIDGE)
• Consumption with Musical Signal: 57 A
• Bass Signal Consumption: 114 A
• Dimensions (H x W x L): 2.5” x 8.1” x 8.5”
• Weight: 2.2 lb

TECHNICAL SPECS (2 Ohms):

• Number of Channels: 4
• RMS Power in 2 Ohms 12,6V: 4 x 300W RMS (STEREO)
• RMS Power in 4 Ohms 12.6V: 4 x 165W RMS (STEREO)
• RMS Power in 2 Ohms 14.4V: 4 x 357W RMS (STEREO)
• RMS Power in 4 Ohms 14.4V: 4 x 217W RMS (STEREO)
• Power @ 12.6V Bridge 4 Ohms: 2 x 600W RMS (BRIDGE)
• Power @ 14.4V Bridge 4 Ohms: 2 x 715W RMS (BRIDGE)
• Power Supply: 9 ~ 15V
• Frequency Response: 10Hz ~ 26KHz
• Bass Boost (Low Pass): +12 dB
• Low Pass Crossover: 90 Hz
• High Pass Crossover: 90 Hz
• Signal to Noise Ratio: > 90 dB
• Harmonic Distortion: < 0.3% THD
• Input Sensitivity: 200mV
• Input Impedance: 14K Ohms
• Minimum Output Impedance: 2 Ohms (STEREO) / 4 Ohms (BRIDGE)
• Consumption with Musical Signal: 53A
• Bass Signal Consumption: 106A
• Dimensions (H x W x L): 2.5” x 8.1” x 8.5”
• Weight: 2.2 lb
