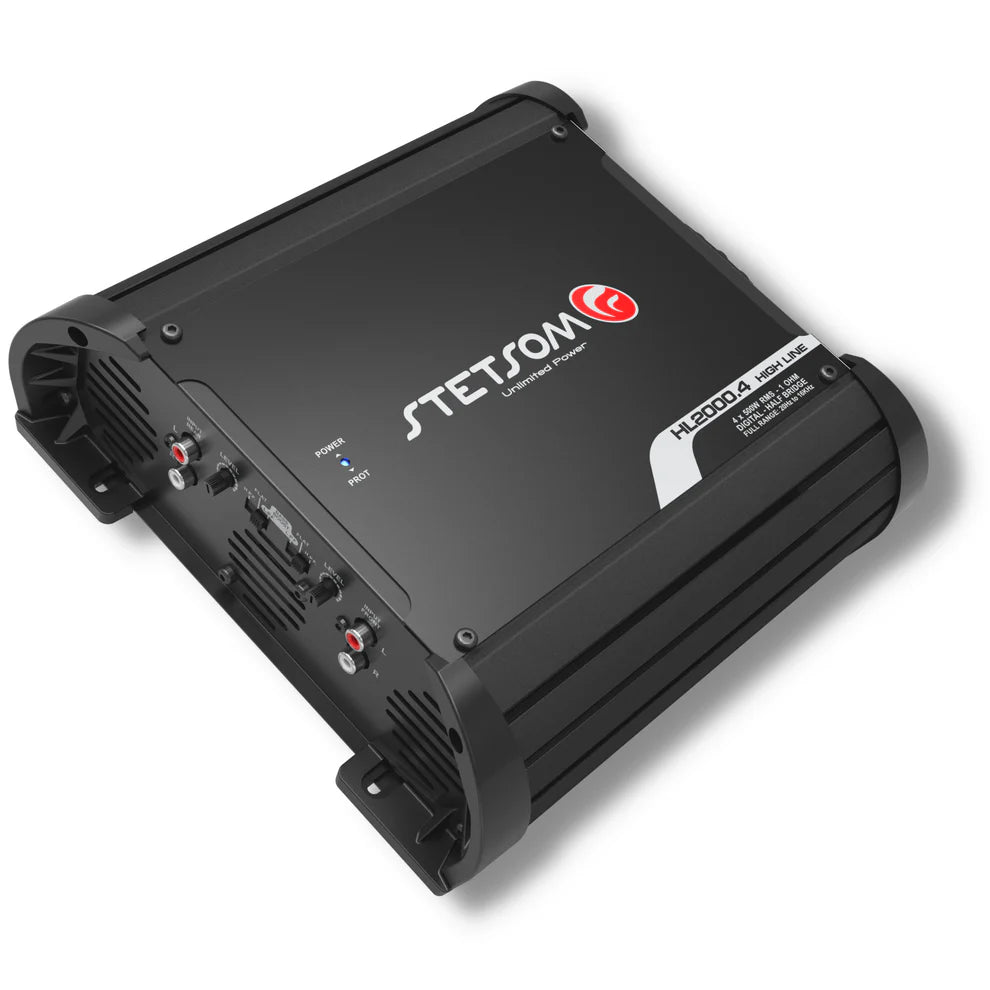

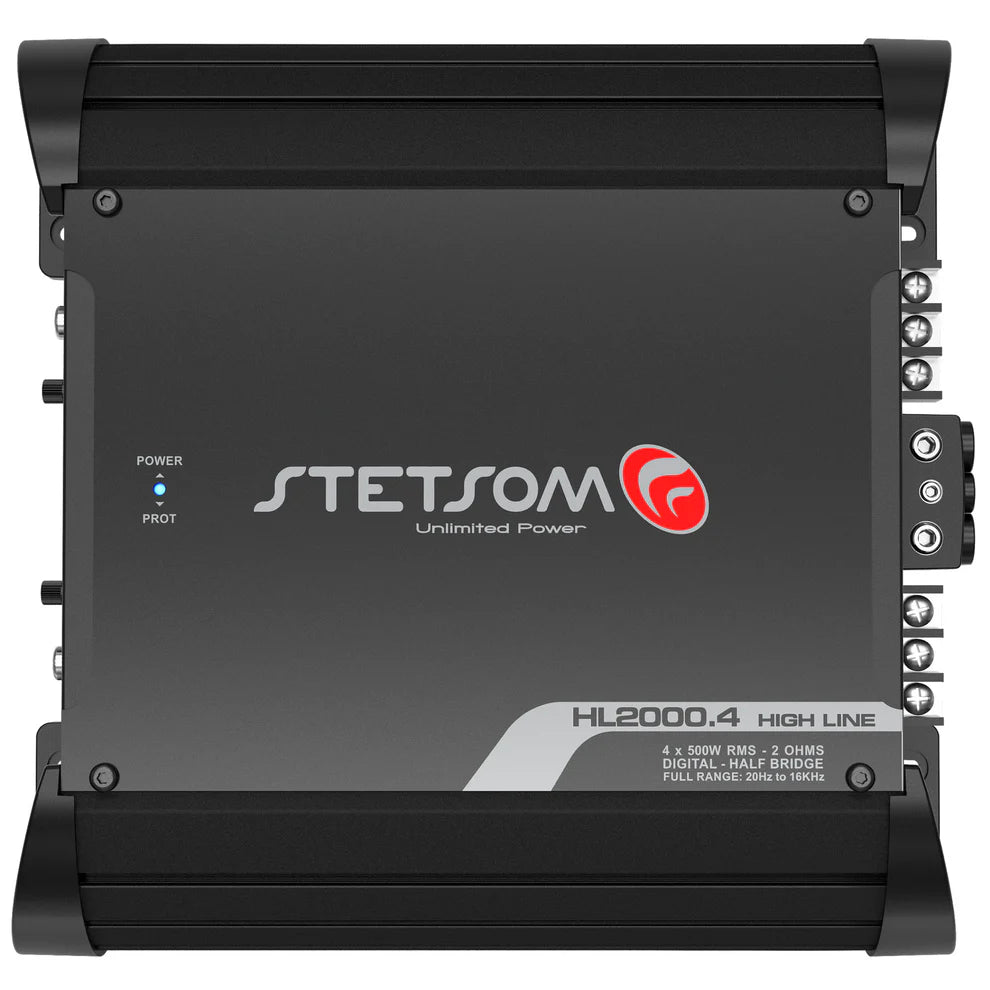

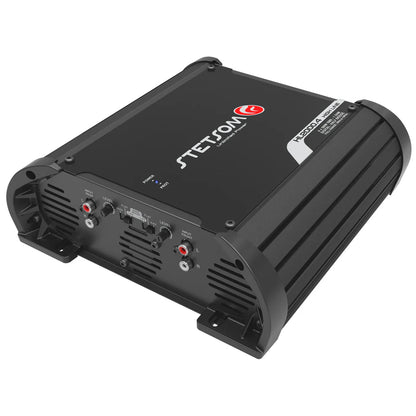

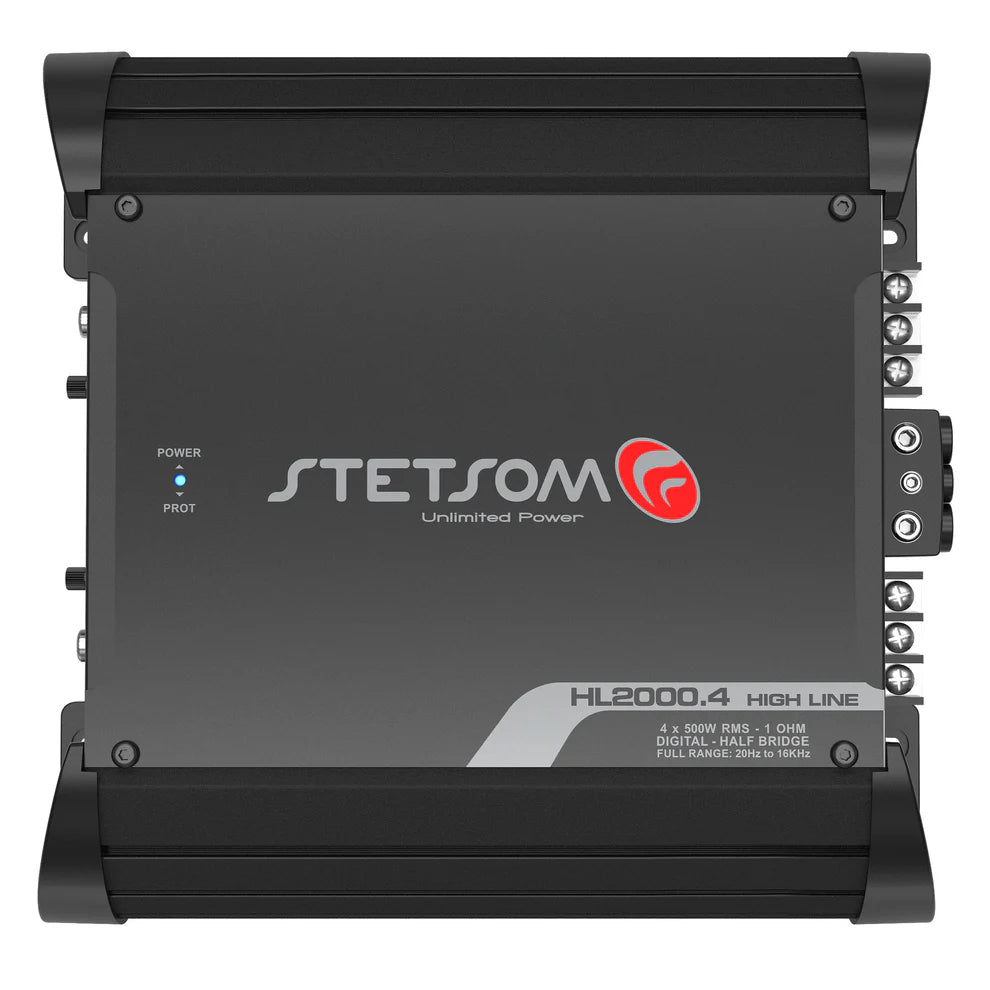

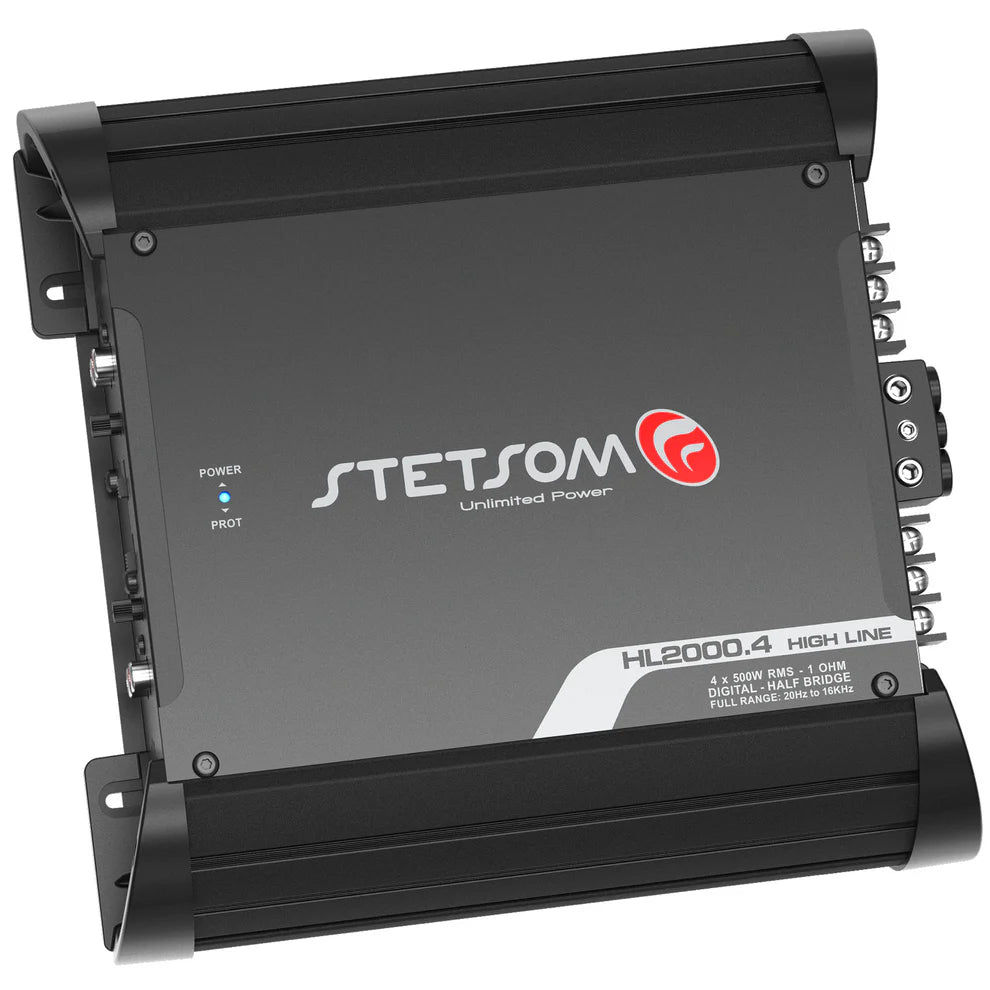

Stetsom HL 2000.4 Digital Amplifier 4 Channels Full Range Class D 2k RMS

TECHNICAL SPECS (1 Ohm):

• Number of Channels: 4
• RMS Power in 1 Ohm 12.6V: 4 x 435W RMS (STEREO)
• RMS Power in 2 Ohms 12.6V: 4 x 280W RMS (STEREO)
• RMS Power in 1 Ohm 14.4V: 4 x 545W RMS (STEREO)
• RMS Power in 2 Ohms 14.4V: 4 x 365W RMS (STEREO)
• Power @ 12.6V Bridge 2 Ohms: 2 x 870W RMS (BRIDGE)
• Power @ 14.4V Bridge 2 Ohms: 2 x 1100W RMS (BRIDGE)
• Power Supply: 9 ~ 15V
• Frequency Response @8 Ohms (-3dB): 20Hz ~ 26KHz
• Bass Boost (Low Pass): +12 dB
• Low Pass Crossover: 90 Hz
• High Pass Crossover: 90 Hz
• Signal to Noise Ratio: > 90 dB
• Harmonic Distortion: > 0.3% THD
• Input Sensitivity: 200mV
• Input Impedance: 15 kOHMS
• Minimum Output Impedance: 1 OHMS (STEREO) / 2 OHMS (BRIDGE)
• Musical Signal Consumption: 97A

• Bass Signal Consumption: 194A
• Dimensions (H x W x L): 3” x 9.2” x 9.4”
• Weight: 6.1 lb

TECHNICAL SPECS (2 Ohms):

• Number of Channels: 4
• RMS Power in 2 Ohms 12.6V: 4 x 500W RMS (STEREO)
• RMS Power in 4 Ohms 12.6V: 4 x 290W RMS (STEREO)
• RMS Power in 2 Ohms 14.4V: 4 x 561W RMS (STEREO)
• RMS Power in 4 Ohms 14.4V: 4 x 338W RMS (STEREO)
• Power @ 12.6V Bridge 4 Ohms: 2 x 1000W RMS (BRIDGE)
• Power @ 14.4V Bridge 4 Ohms: 2 x 1080W RMS (BRIDGE)
• Power Supply: 9 ~ 15V
• Frequency Response @8 Ohms (-3dB): 20Hz ~ 26KHz
• Bass Boost (Low Pass): +12 dB
• Low Pass Crossover: 90 Hz
• High Pass Crossover: 90 Hz
• Signal to Noise Ratio: > 90 dB
• Harmonic Distortion: > 0.3% THD
• Input Sensitivity: 200mV
• Input Impedance: 15 kOHMS
• Minimum Output Impedance: 2 OHMS (STEREO) / 4 OHMS (BRIDGE)
• Consumption with Musical Signal: 96A
• Bass Signal Consumption: 192A
• Dimensions (H x W x L): 3” x 9.2” x 9.4”
• Weight: 5.9 lb
