TARAMPS

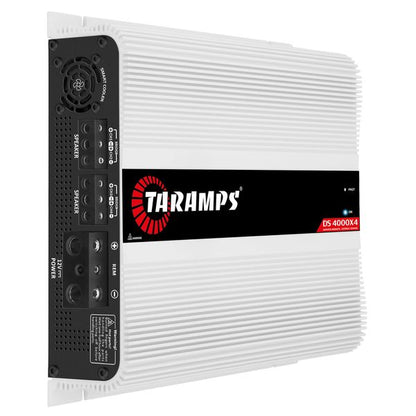

TARAMPS DS 4000X4 4 CHANNELS 4000 WATTS RMS CAR AUDIO AMPLIFIER 1 OHM

TARAMPS DS 4000X4 4 CHANNELS 4000 WATTS RMS CAR AUDIO AMPLIFIER 1 OHM

Regular price $339.00 USD
Regular price Sale price $339.00 USD
Sale Sold out
Shipping calculated at checkout.
  • 4000 Watts
  • 4 Channels
  • 1 and 2 Ohms
  • Small Size
  • Efficient
  • Crossover HPF and LPF
  • Full Rang Designed with high technology, the DS 4000×4 is a versatile 4000 Watt amplifier spread out in 4 channels of 1000 Watts RMS that can be bridged. This incredible product is able to amplify naturally and with high quality the most varied types of sound systems, suiting to all musical styles.

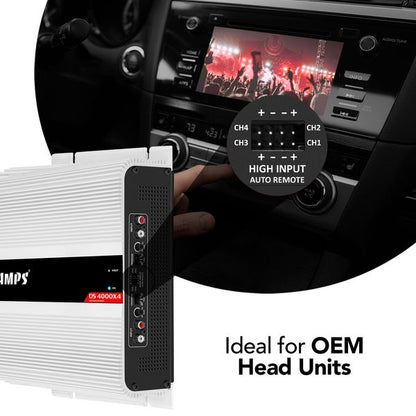

    Another great new feature is the High level input with 4 individual channels and automatic activation, which makes it compatible with most head units on the market, including ORIGINAL HEAD UNITS AND MULTIMEDIA, without the need for adapters. In addition, it has the traditional RCA inputs, Gain adjustment and fixed Crossover (HPF, LPF and Full).
    All this and more, so that your musical experience is even better.
TECHNICAL INFORMATION
1 OHM VERSION Nominal Power @14.4VDC
1 Ohm: 4000W RMS (4 x 1000W RMS)
2 Ohms: 2400W RMS (4 x 600W RMS)
4 Ohms: N/A

2 Bridged Channels
2 Ohms: 4000W RMS (2 x 2000W RMS)
NUMBER OF CHANNELS 04
INPUT SENSITIVITY (Gain = Max): 250mV (RCA) / 3V (WIRE)
(Gain = Max): 4V (RCA) / >10V (WIRE)
SIGNAL TO NOISE RATIO >86dB
FREQUENCY RESPONSE 8Hz ~ 20KHz (-3dB)
CROSSOVER HIGH PASS (HPF) 90Hz (-12dB/8ª) Fixed
CROSSOVER LOW PASS (LPF) 90Hz (-12dB/8ª) Fixed
PROTECTION SYSTEM Output Short Circuit
MINIMUM SUPPLY VOLTAGE 9VDC
MAXIMUM SUPPLY VOLTAGE 17VDC
CONSUMPTION AT REST 2.5A
MAXIMUM MUSIC CONSUMPTION 185A
MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL 370A
DIMENSIONS (WXHXD) 10.55" x 2.83" x 13.11" (268 x 72 x 333mm)
WEIGHT 11.15lb (5,06Kg)
EAN 7898556849258
